Desktop Label Printer

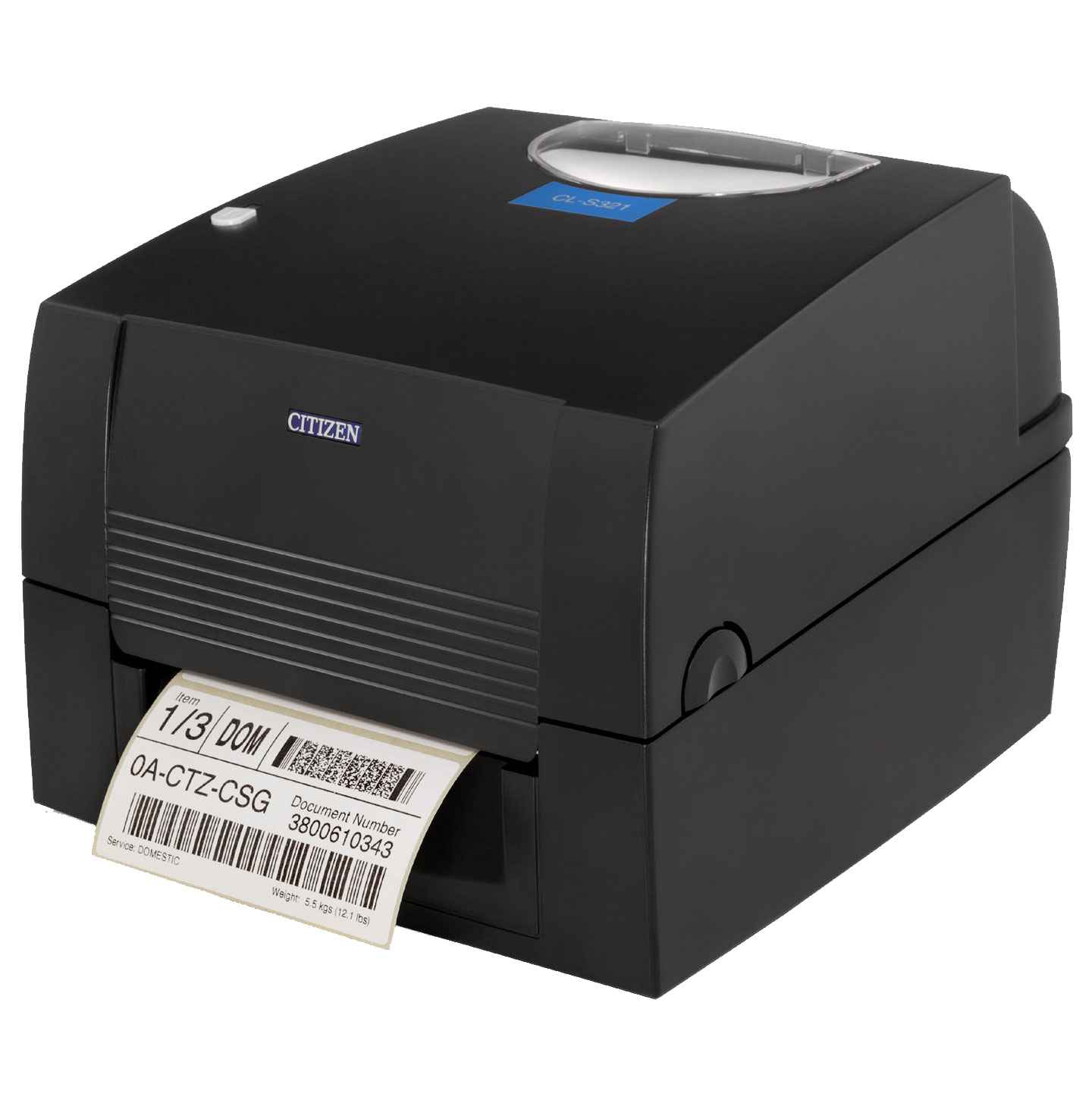

Citizen CLS-321

The CL-S321 features legacy EPL2 compatibility making it easy to plug and go with existing applications. Easy to use and economically priced the CL-S321 is a great fit for value based thermal transfer printing.

Easy to load ribbon, easy access label path and single button operation make the CL-S321 ultimately easy to use.

The compact and efficient design help reduce desktop space usage and make the CL-S321 a great fit for all thermal transfer applications.

Device Specification

	Technical Specification
Technology	Thermal Transfer/Direct Thermal
Resolution	203 dpi (8 dots per mm)
Max Print Speed	4 inches per second (102 mm/s)
Max Print Width	4.25 inches (108 mm)
Media Width (min to max)	1 inch to 4.64 inches (25.4 mm to 118 mm)
Media Thickness (min to max)	0.003 to 0.008 inches (0.06 to 0.2 mm)
Media Sensor	Fixed label gap and black mark
Media Length (min to max)	1.5 inches to 68 inches (38.1 mm to 1727 mm)
Roll Size (max), Core size	5 inches (127 mm) diameter, 1 / 1.5 inches (25,4 mm / 38,1 mm) core
Interface	USB (version 2.0, full speed), RS-232 Serial (DB-9)
Case	Hi-Open™
Mechanism	Self-contained
Panel	One LED, Control key: FEED
Flash (Non-Volatile Memory)	8MB Flash, 16MB SDRAM
Windows® drivers and software	Supporting XP®, 2003, 2008, Vista™, 7, 8
Size (W x D x H) and Weight	8.8“ (224 mm) x 10“ (254 mm) x 6.7“ (170 mm), 5.5lbs (2.5 Kg)
Printer, Head Warranty	2 Years for Printer; 30 Kms/6 months on head
